38mm Custom Plastic Moulding Double Flapper Plastic Mould Cap On 160T Machine

Certification
China Yuyao Jinqiu Plastic Mould Co., Ltd. certification
China Yuyao Jinqiu Plastic Mould Co., Ltd. certification
I'm Online Chat Now

38mm Custom Plastic Moulding Double Flapper Plastic Mould Cap On 160T Machine

38mm Custom Plastic Moulding Double Flapper Plastic Mould Cap On 160T Machine
38mm Custom Plastic Moulding Double Flapper Plastic Mould Cap On 160T Machine 38mm Custom Plastic Moulding Double Flapper Plastic Mould Cap On 160T Machine 38mm Custom Plastic Moulding Double Flapper Plastic Mould Cap On 160T Machine

Large Image :  38mm Custom Plastic Moulding Double Flapper Plastic Mould Cap On 160T Machine

Product Details:
Place of Origin: China
Brand Name: jinqiu
Certification: ISO9001
Model Number: JQ-2-4
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD8000-15000/set
Packaging Details: standard wooden case package, size depend on mould size
Delivery Time: 45-60workdays
Payment Terms: L/C, T/T
Supply Ability: 50sets per month

38mm Custom Plastic Moulding Double Flapper Plastic Mould Cap On 160T Machine

Description
Cavity: 4cavity Runner: Cold, But Hot Runner Optional
Material: ASSAB8407 Cap Material: PP
Machine: 160T Drawing: CAD. STP. IGS
Finish Time: 45workdays Package: Wooden Case
Payment: 30% Deposit And 70% Balance Before Shipment Term: FOB. CRF
High Light:

38mm Custom Plastic Moulding

,

Plastic Mould Cap 38mm

,

Custom Plastic Moulding Double Flapper

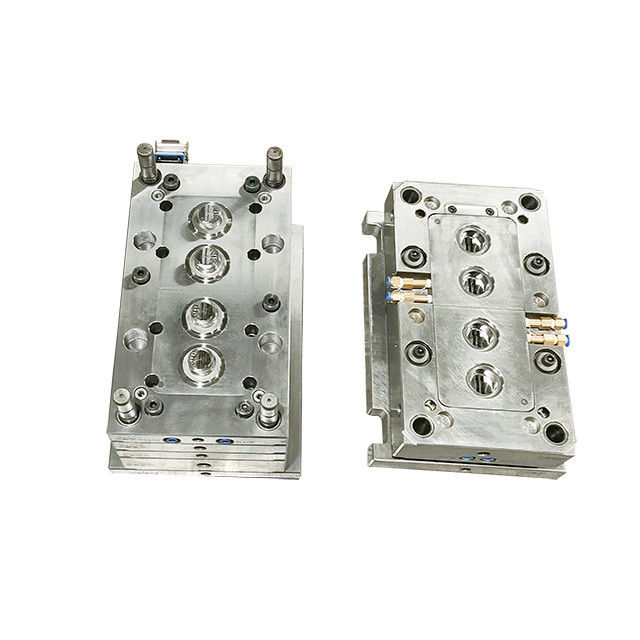

D38mm double flapper fliptop cap 4cavity cold runner plastic cap mould



Mould system Injection Mould
Cavity number 4cavity
Surface treatment Glossy and Matt
Runner system cold runner, hot runner option
Mould Material German2344, 2316,NAK80, H13, ASSAB8407, S136 and so on
Mould base China standard, HASCO standard, DME standard.
Design software CAD, STP. IGS. X_T
Plastic mould life 1-3million shots
Manufacturing Machines CNC,EDM,MILLING,WIRE-CUT, etc
cap material PP material
package In strong wooden case to avoid any damages during shipment





Description:



This is 38mm double flapper fliptop cap inner design is snap, mould do in 4cavity and demould by slider and ejector pin. The mould core&cavity use ASSAB8407, mould base standard S50C, cold runner runner.



The mould should be running on 160T injection machine, automatic demould drop cap which cycle time more fast, hot runner system don't have runner material save cost and reduce cycle time.



Mould processing by complete steps from design to purchase steel material, first step maching, inspection, precision machining, assemble and test, check samples. The mould steel do heat treatment keep strength and work life.



Operational specifications, regular cleaning and maintenance can make the mold life more longer. When we make mould also provide extra some quick-wear spare parts for customer, such as O ring, ejector pin, water connector, spring and so on which easy to replace basic wearing parts. Normally after sale is one year after mould delivery, JINQIU provide technical support all time.



Processing:



Make contract→customer finish down payment→customer provide sample or drawing→JINQIU design details product and mould drawing

→customer approve drawing→JINQIU start make mould→JINIQU test mould and provide samples to customer for check→customer approve

samples or need to adjust→after samples confirmed JINQIU inspection and package mould→customer finish balance→JINIQU prepare for shipment



38mm Custom Plastic Moulding Double Flapper Plastic Mould Cap On 160T Machine 038mm Custom Plastic Moulding Double Flapper Plastic Mould Cap On 160T Machine 1





FAQ:



Q1: Are you factory or trading company?

A: We are factory located in Yuyao City, Zhejiang Province, China



Q2: How to get a quotation and start business relationship with your company?

A: Please send us relate contact information, such as Email, Phone, WeChat, WhatsApp and so on



Q3: How to receive a price quotation in timely?

A: When you send us an enquiry, please kindly make sure all the details, such as how many cavity, runner, mould steel, extra request if have.



Q4: What types of payment terms do you accept?

A: T/T(30% deposit and 70% balance before delivery ), 100% LC at sight



Q5. Before shipment. how to make sure the mould quality?

A: We will supply you mould picture and mould running video



Q6: Can you get samples from you?

A: Yes, after mould finish we will test mould and provide samples for check



Q7: If any quality appear how can you help us to solve?

A: yes, JINQIU provide after-sale technical support, if have mould problem customer have to provide relate photo and video point out the problem, we will check and analysis it help to solve



Q8: how long after sale service and if have any extra free spare parts?

A: free after sale service 1year, extra free spare parts yes have and such as O ring, water connector, spring, ejector pin and son on
