8cavity Bottle Cap Mould 38mm Plastic Cap Mould On 160T Machine

Certification
China Yuyao Jinqiu Plastic Mould Co., Ltd. certification
China Yuyao Jinqiu Plastic Mould Co., Ltd. certification
I'm Online Chat Now

8cavity Bottle Cap Mould 38mm Plastic Cap Mould On 160T Machine

8cavity Bottle Cap Mould 38mm Plastic Cap Mould On 160T Machine
8cavity Bottle Cap Mould 38mm Plastic Cap Mould On 160T Machine 8cavity Bottle Cap Mould 38mm Plastic Cap Mould On 160T Machine 8cavity Bottle Cap Mould 38mm Plastic Cap Mould On 160T Machine

Large Image :  8cavity Bottle Cap Mould 38mm Plastic Cap Mould On 160T Machine

Product Details:
Place of Origin: China
Brand Name: jinqiu
Certification: ISO9001
Model Number: JQ-3-10
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD8000-15000/set
Packaging Details: standard wooden case package, size depend on mould size
Delivery Time: 45-60workdays
Payment Terms: L/C, T/T
Supply Ability: 50sets per month

8cavity Bottle Cap Mould 38mm Plastic Cap Mould On 160T Machine

Description
Cavity: 8cavity Runner: Cold
Material: ASSAB S136 Mould Base: Standard
Machine: 160T Drawing: CAD. STP. IGS
Finish Time: 45workdays Samples: Test Provide
Payment: 30% Deposit And 70% Balance Before Shipment Term: FOB. CRF
High Light:

8cavity Bottle Cap Mould

,

Bottle Cap Mould 38mm

,

38mm Plastic Cap Mould

8cavity 38mm PP cleaner cap main part for bottle cold runner bottle cap mould



Technique Plastic injection Mould
Surface treatment Glossy or matt
Material

ASSAB S136, German2344, 2316, H13. NAK80, ASSAB8407, S136 and so on

Design software CAD, STP. IGS. X_T
Plastic mould life 1-3million shots
Manufacturing Machines CNC,EDM,MILLING,WIRE-CUT, etc
Runner Cold runner
Cavity number of mould 1*8cavity or Multiple cavity depend on customized
Mould standard Domestic standard, HASCO standard, DME standard.
Mould testing have mould test after mould finish and provide samples for check
package In strong wooden case to avoid any damages during shipment





Description:

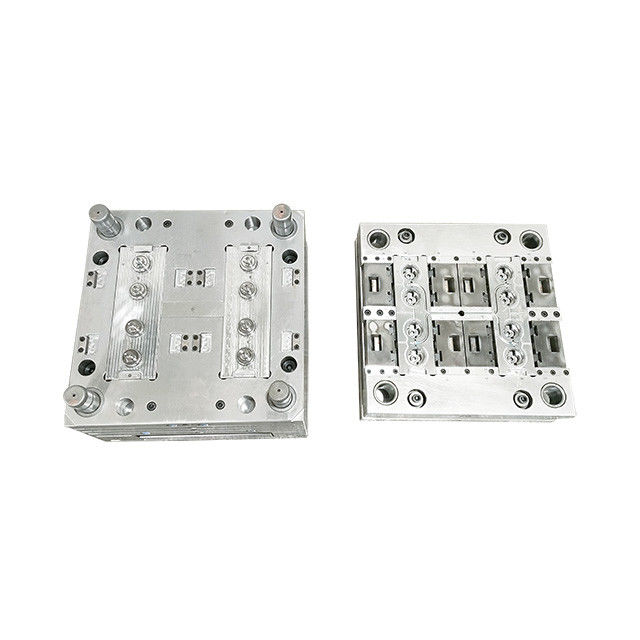

This is diameter 38mm cleaner cap main part  for bottle which  material is PP.  The mould do in 8cavity suitable work on 160T injection machine. It is cold runner, core and cavity use heat treatment steel ASSAB S136, mould base standard stainless steel 4CR13, the demould structure by stripper plate



The mould injection way is sub gate point, During mould running the cap and runner material drop automatically to save worker's cost



Operational specifications, regular cleaning and maintenance can make the mold life more longer. When we make mould also provide extra some quick-wear spare parts for customer, such as O ring, ejector pin, water connector, spring and so on which easy to replace basic wearing parts. Normally after sale is one year after mould delivery, JINQIU provide technical support all time.



Processing:



Make contract→customer finish down payment→customer provide sample or drawing→JINQIU design details product and mould drawing

→customer approve drawing→JINQIU start make mould→JINIQU test mould and provide samples to customer for check→customer approve

samples or need to adjust→after samples confirmed JINQIU inspection and package mould→customer finish balance→JINIQU prepare for shipment



8cavity Bottle Cap Mould 38mm Plastic Cap Mould On 160T Machine 0



8cavity Bottle Cap Mould 38mm Plastic Cap Mould On 160T Machine 18cavity Bottle Cap Mould 38mm Plastic Cap Mould On 160T Machine 2





FAQ:



Q1: Are you factory or trading company?

A: We are factory located in Yuyao City, Zhejiang Province, China



Q2: How to get a quotation and start business relationship with your company?

A: Please send us relate contact information, such as Email, Phone, WeChat, WhatsApp and so on



Q3: How to receive a price quotation in timely?

A: When you send us an enquiry, please kindly make sure all the details, such as how many cavity, runner, mould steel, extra request if have.



Q4: What types of payment terms do you accept?

A: T/T(30% deposit and 70% balance before delivery ), 100% LC at sight



Q5. Before shipment. how to make sure the mould quality?

A: We will supply you mould picture and mould running video



Q6: Can you get samples from you?

A: Yes, after mould finish we will test mould and provide samples for check



Q7: If any quality appear how can you help us to solve?

A: yes, JINQIU provide after-sale technical support, if have mould problem customer have to provide relate photo and video point out the problem, we will check and analysis it help to solve



Q8: how long after sale service and if have any extra free spare parts?

A: free after sale service 1year, extra free spare parts yes have and such as O ring, water connector, spring, ejector pin and son on
