12cavity Injection Molding Bottle Caps 28mm Hot Runner Injection Mould

Certification
China Yuyao Jinqiu Plastic Mould Co., Ltd. certification
China Yuyao Jinqiu Plastic Mould Co., Ltd. certification
I'm Online Chat Now

12cavity Injection Molding Bottle Caps 28mm Hot Runner Injection Mould

12cavity Injection Molding Bottle Caps 28mm Hot Runner Injection Mould
12cavity Injection Molding Bottle Caps 28mm Hot Runner Injection Mould 12cavity Injection Molding Bottle Caps 28mm Hot Runner Injection Mould 12cavity Injection Molding Bottle Caps 28mm Hot Runner Injection Mould

Large Image :  12cavity Injection Molding Bottle Caps 28mm Hot Runner Injection Mould

Product Details:
Place of Origin: China
Brand Name: jinqiu
Certification: ISO9001
Model Number: JQ-1-9
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD12000-35000/set
Packaging Details: standard wooden case package, size depend on mould size
Delivery Time: 45-60workdays
Payment Terms: L/C, T/T
Supply Ability: 50sets per month

12cavity Injection Molding Bottle Caps 28mm Hot Runner Injection Mould

Description
Cavity: 12cavity Runner: Hot Runner, Brand Optional
Material: German2083 Mould Base: Standard S50C
Heat Treatment: Will Do Drawing: Provide
Processing: Professional Machine Surface: Glossy Or Matt
Package: Wooden Box Payment: Down Payment 30% And Balance Before Shipment
High Light:

12cavity Injection Molding Bottle Caps

,

Hot Runner Injection Mould 12cavity

,

Injection Molding Bottle Caps 28mm

12cavity D28mm round PP cover hot runner for bottle plastic injection mould



Mould structure Injection and pump off
Runner Hot, but cold optional
Cavity Material

German2083, 2316,NAK80, H13, ASSAB8407, S136 and so on

Drawing 2D or 3D
Mould Base standard
Cavity 1*12cavity or Multiple cavity depend on customized
Mould life 1-3million shots
After Sale service 1year
Test sample Provide
Mould Package in strong wooden case to avoid any damages during shipment
Delivery By sea or by air





Description:

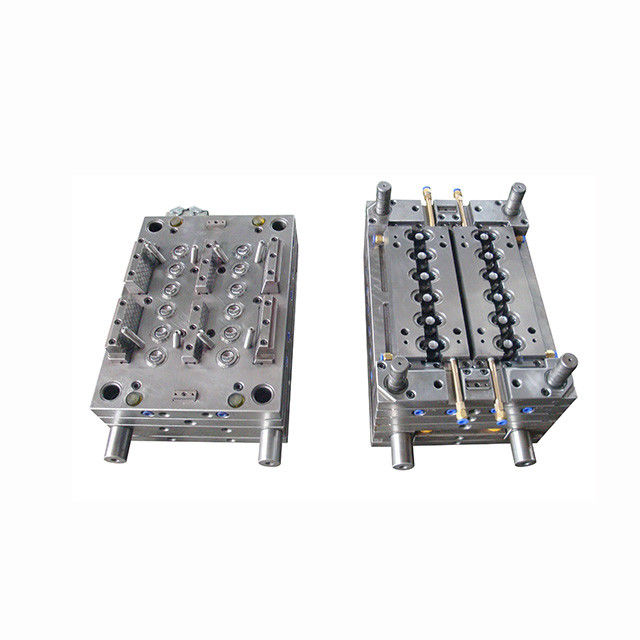

This is D28mm round shape PP cover fit for kinds of bottle injection mould, the mould do in 12cavity and hot runner, core&cavity steel choose German2083 stainless steel. The mould demould system is pump off which cycle time around 20s. Due to mould size it can be running on 160-200T injection machine and produce automatically drop, if want to use robot arm pick up the cover also is ok.



This is standard round cover can fit for different kinds of material bottle neck, such as PE, PP, PET and suitable for different yield package like cosmectics, food, industral, medicine and so on.



For mould JINQIU provide technical support all time and normally after-sale service 1year which if have any spare parts problem we will repair or change by free but expect damage by human.



Processing:



After the drawing is confirmed by the customer, the mold will be processed in a perfect and careful way. Every part will be processed and processed, and the size will be checked to see if it is correct. Every link will be monitored effectively to ensure that no error will occur in the process. After the mold assembly is completed, the mold will be tested to verify whether the mold action is OK and whether the product is OK





12cavity Injection Molding Bottle Caps 28mm Hot Runner Injection Mould 0



12cavity Injection Molding Bottle Caps 28mm Hot Runner Injection Mould 1

12cavity Injection Molding Bottle Caps 28mm Hot Runner Injection Mould 2





FAQ:



Q1: Are you factory or trading company?

A: We are factory located in Yuyao City, Zhejiang Province, China



Q2: How to get a quotation and start business relationship with your company?

A: Please send us relate contact information, such as Email, Phone, WeChat, WhatsApp and so on



Q3: How to receive a price quotation in timely?

A: When you send us an enquiry, please kindly make sure all the details, such as how many cavity, runner, mould steel, extra request if have.



Q4: What types of payment terms do you accept?

A: T/T(30% deposit and 70% balance before delivery ), 100% LC at sight



Q5. Before shipment. how to make sure the mould quality?

A: We will supply you mould picture and mould running video



Q6: Can you get samples from you?

A: Yes, after mould finish we will test mould and provide samples for check



Q7: If any quality appear how can you help us to solve?

A: yes, JINQIU provide after-sale technical support, if have mould problem customer have to provide relate photo and video point out the problem, we will check and analysis it help to solve



Q8: how long after sale service and if have any extra free spare parts?

A: free after sale service 1year, extra free spare parts yes have and such as O ring, water connector, spring, ejector pin and son on
