Product Details:
|
| Cavity No.: | Single Cavity | Material: | Alum7075 |
|---|---|---|---|
| Back Plate: | Steel P20 | Runner: | Cooling |
| MOQ: | 1set | Drawing: | 2D Or 3D |
| Finish Time: | 35workdays | Certificate: | ISO9001 |
| Payment: | 30% Deposit And 70% Balance Before Shipment | Term: | FOB. CRF |
| High Light: | Single Cavity Automative Plastic Mould,Automative Plastic Mould 1L,Plastic Injection Molding Single Cavity |
||
single cavity 1L PE material petrol bottle automative plastic mould
| Structure | Blowing common mould |
| Cooling | design in |
| Material |
Alum7075, other steel optional |
| Design drawing | Provide |
| Plastic mould life | more than1million shots |
| Moq | 1set |
| Inspection | Provide |
| Cavity number of mould | single cavity, but multi cavity optional |
| Deflashing system | Without auto-deflashing system |
| Mould testing | have mould test after mould finish and provide samples for check |
| package | In strong wooden case to avoid any damages during shipment |
Description:

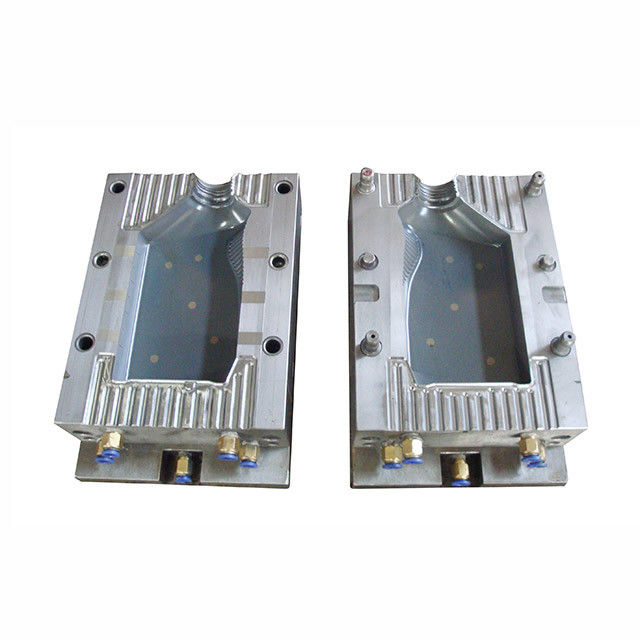

This is single cavity 1L petrol HDPE bottle mould made by Alum material 7075, the mould design is normal without auto-deflashing systemt, the cavity surface do in sandblast. inner design make full circle round cooling line around aim to touch good cooling during producing.
The mould use Alum the mould weight is more light and cooling compare to steel is better and reduce cycle around 1-2s.
Normally after sale is one year after mould delivery, JINQIU provide technical support all time.Except for the mold damage caused by human reasons, if the parts are damaged, they can be replaced free of charge
Advantage:
Blow molding machine running
Mitsubishi Motor Servo system is adopted to do high location.
It's very easy and convenient for Human-computer interface to operate and control the machine.
It could control each running of the system in any time, automatically test malfunctions, which is convenient to maintain the machine
Skilled Language to ensure good communion
Special in exported mould, experienced in international standard
Rational mould design to extend mould life, and to get high production efficiency,
Precision Machining to fine parting line effect
FAQ:
Q1: Are you factory or trading company?
A: We are factory located in Yuyao City, Zhejiang Province, China
Q2: How to get a quotation and start business relationship with your company?
A: Please send us relate contact information, such as Email, Phone, WeChat, WhatsApp and so on
Q3: How to receive a price quotation in timely?
A: When you send us an enquiry, please kindly make sure all the details, such as how many cavity, runner, mould steel, extra request if have.
Q4: What types of payment terms do you accept?
A: T/T(30% deposit and 70% balance before delivery ), 100% LC at sight
Q5. Before shipment. how to make sure the mould quality?
A: We will supply you mould picture and mould running video
Q6: Can you get samples from you?
A: Yes, after mould finish we will test mould and provide samples for check
Q7: If any quality appear how can you help us to solve?
A: yes, JINQIU provide after-sale technical support, if have mould problem customer have to provide relate photo and video point out the problem, we will check and analysis it help to solve
Q8: how long after sale service and if have any extra free spare parts?
A: free after sale service 1year, extra free spare parts yes have and such as O ring, water connector, spring, ejector pin and son on
