Home ProductsBottle Cap Mould

2cavity Injection Molding Cold Runner 70mm Plastic Bottle Mold For 50L Jerrycan

Certification
China Yuyao Jinqiu Plastic Mould Co., Ltd. certification
China Yuyao Jinqiu Plastic Mould Co., Ltd. certification
I'm Online Chat Now

2cavity Injection Molding Cold Runner 70mm Plastic Bottle Mold For 50L Jerrycan

2cavity Injection Molding Cold Runner 70mm Plastic Bottle Mold For 50L Jerrycan
2cavity Injection Molding Cold Runner 70mm Plastic Bottle Mold For 50L Jerrycan 2cavity Injection Molding Cold Runner 70mm Plastic Bottle Mold For 50L Jerrycan 2cavity Injection Molding Cold Runner 70mm Plastic Bottle Mold For 50L Jerrycan

Large Image :  2cavity Injection Molding Cold Runner 70mm Plastic Bottle Mold For 50L Jerrycan

Product Details:
Place of Origin: China
Brand Name: jinqiu
Certification: ISO9001
Model Number: JQ-3-7
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD4000-8000/set
Packaging Details: standard wooden case package, size depend on mould size
Delivery Time: 45-60workdays
Payment Terms: L/C, T/T
Supply Ability: 50sets per month

2cavity Injection Molding Cold Runner 70mm Plastic Bottle Mold For 50L Jerrycan

Description
Cavity: 2cavity Runner: Cold, But Hot Runner Optional
Material: H13 Heat Treament Mould Base: Standard
Machine: 160T Drawing: CAD. STP. IGS
Finish Time: 45workdays Samples: Test Provide
Payment: 30% Deposit And 70% Balance Before Shipment Term: FOB. CRF
High Light:

2cavity Injection Molding Cold Runner

,

Injection Molding Cold Runner 70mm

,

70mm Plastic Bottle Mold

2cavity 70mm round PE anti proof cap for 20-50L jerrycan cold runner bottle cap mould



Technique Plastic injection Mould
Surface treatment Glossy or matt
Material

H13, German2316, 2344,NAK80, ASSAB8407, S136 and so on

Design software CAD, STP. IGS. X_T
Plastic mould life 1-3million shots
Manufacturing Machines CNC,EDM,MILLING,WIRE-CUT, etc
Runner Cold runner/Hot runner optional
Cavity number of mould 1*2cavity or Multiple cavity depend on customized
Mould standard Domestic standard, HASCO standard, DME standard.
Mould testing have mould test after mould finish and provide samples for check
package In strong wooden case to avoid any damages during shipment





Description:

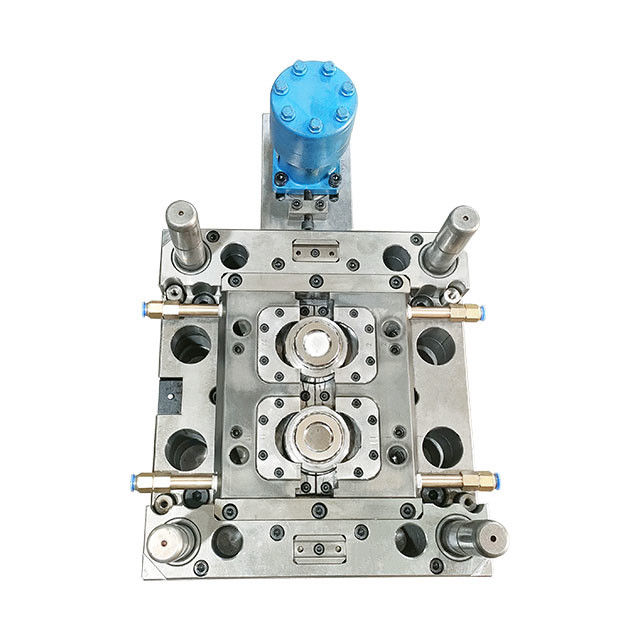

This is diameter 70mm round anti proof round cap for 20-50L jarrycan which  material is PE.  The mould do in 2cavity suitable work on 160T injection machine and the protect ring finish in mould use slider structure. It is cold runner, core and cavity use heat treatment steel H13, mould base standard S50C



The mould injection way is top gate point, demould by oil motor automatically drop cap and runner. During mould running on injection machine also can use robot arm pick up the cap and runner to save worker's cost



Operational specifications, regular cleaning and maintenance can make the mold life more longer. When we make mould also provide extra some quick-wear spare parts for customer, such as O ring, ejector pin, water connector, spring and so on which easy to replace basic wearing parts. Normally after sale is one year after mould delivery, JINQIU provide technical support all time.



Processing:



Make contract→customer finish down payment→customer provide sample or drawing→JINQIU design details product and mould drawing

→customer approve drawing→JINQIU start make mould→JINIQU test mould and provide samples to customer for check→customer approve

samples or need to adjust→after samples confirmed JINQIU inspection and package mould→customer finish balance→JINIQU prepare for shipment



2cavity Injection Molding Cold Runner 70mm Plastic Bottle Mold For 50L Jerrycan 0



2cavity Injection Molding Cold Runner 70mm Plastic Bottle Mold For 50L Jerrycan 12cavity Injection Molding Cold Runner 70mm Plastic Bottle Mold For 50L Jerrycan 2





FAQ:



Q1: Are you factory or trading company?

A: We are factory located in Yuyao City, Zhejiang Province, China



Q2: How to get a quotation and start business relationship with your company?

A: Please send us relate contact information, such as Email, Phone, WeChat, WhatsApp and so on



Q3: How to receive a price quotation in timely?

A: When you send us an enquiry, please kindly make sure all the details, such as how many cavity, runner, mould steel, extra request if have.



Q4: What types of payment terms do you accept?

A: T/T(30% deposit and 70% balance before delivery ), 100% LC at sight



Q5. Before shipment. how to make sure the mould quality?

A: We will supply you mould picture and mould running video



Q6: Can you get samples from you?

A: Yes, after mould finish we will test mould and provide samples for check



Q7: If any quality appear how can you help us to solve?

A: yes, JINQIU provide after-sale technical support, if have mould problem customer have to provide relate photo and video point out the problem, we will check and analysis it help to solve



Q8: how long after sale service and if have any extra free spare parts?

A: free after sale service 1year, extra free spare parts yes have and such as O ring, water connector, spring, ejector pin and son on
